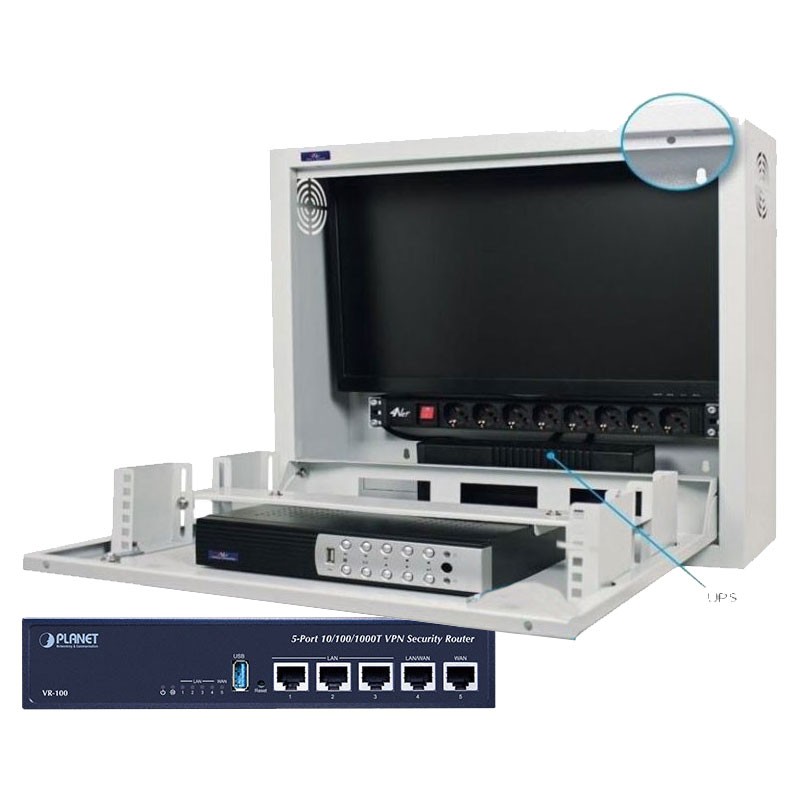

Secubox 200 wall-mounted cabinets are designed in line with the requirements of the Privacy Guarantor (GDPR 679/2016) to secure video surveillance systems from unauthorized access.

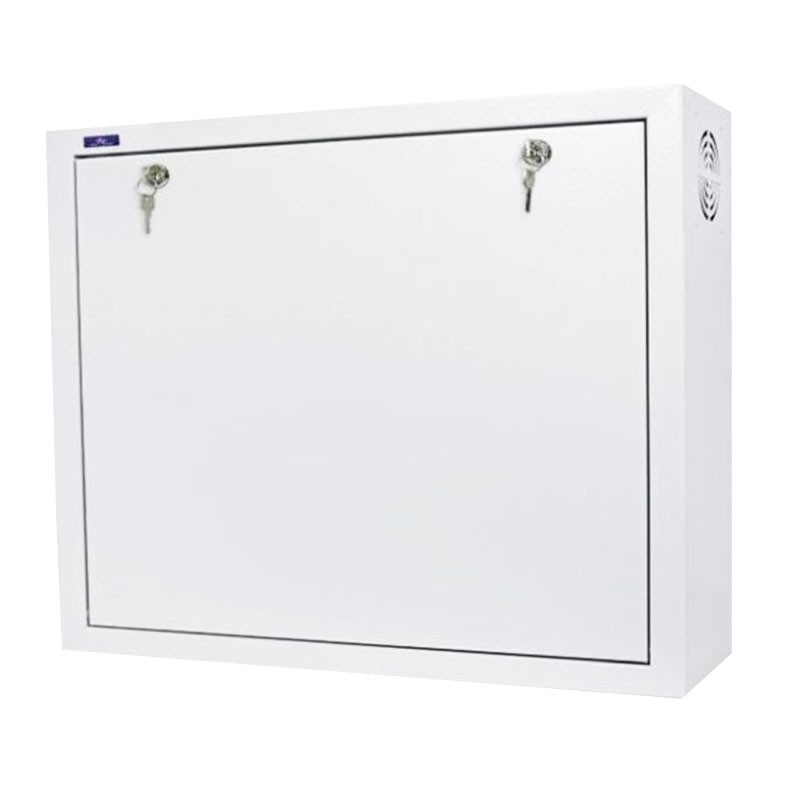

The front door is equipped with dual mapping locks and different keys.



The sides have louvers and provision for mounting ventilation fans.

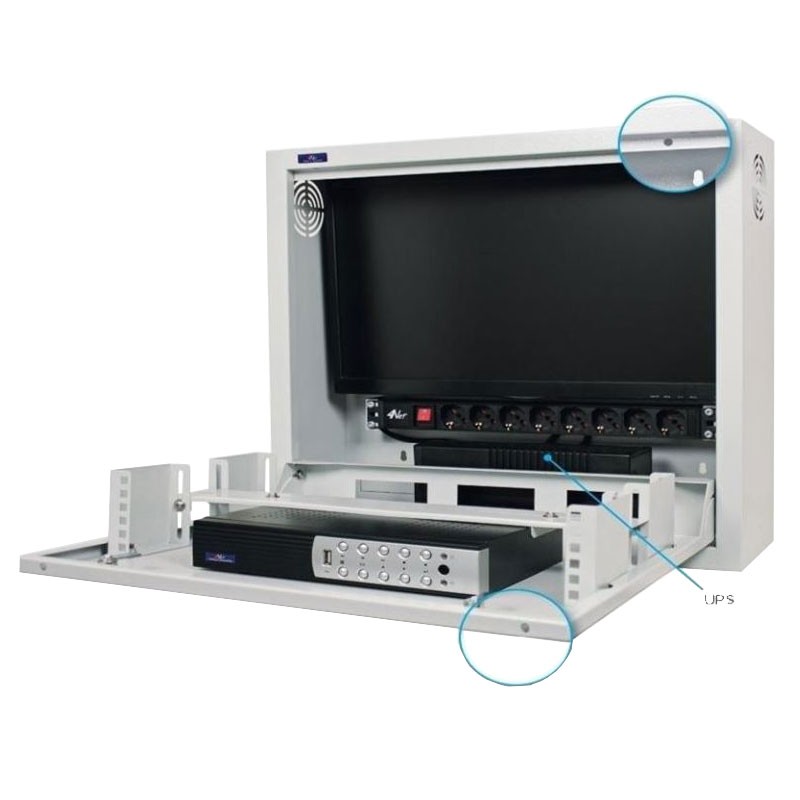

Vertical wall mounting allows housing in only 20 cm depth, DVR/NVR, 24 Inch Monitor, 19" Muiltipresa and UPS.



Features:

• Dimensions: base 600 mm - thickness 200 mm - height 580 mm
• Holes for mounting magnetic microcontacts for connection to an alarm system if present
• One-piece welded structure made of 1.2mm epoxy powder-coated sheet steel
• Front door with 2 different keys and 90-degree tilting opening
• Mounting DVR/NVR/Switch via height and width adjustable brackets or standard 19" Rack
• Provision for housing Vesa bracket
• Provision for housing 6/8 place multi-socket outlet
• Holes for housing 2 120mm fans
• Holes for mounting magnetic microcontacts and tamper switches
• Compliant with RoHS specification 2 Directive 2011/65/EU

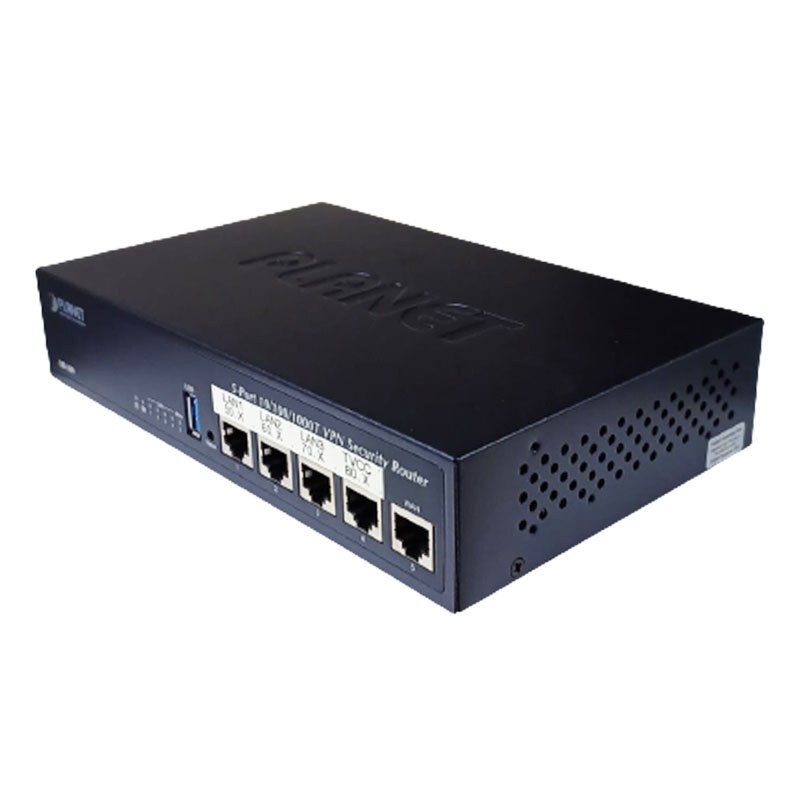

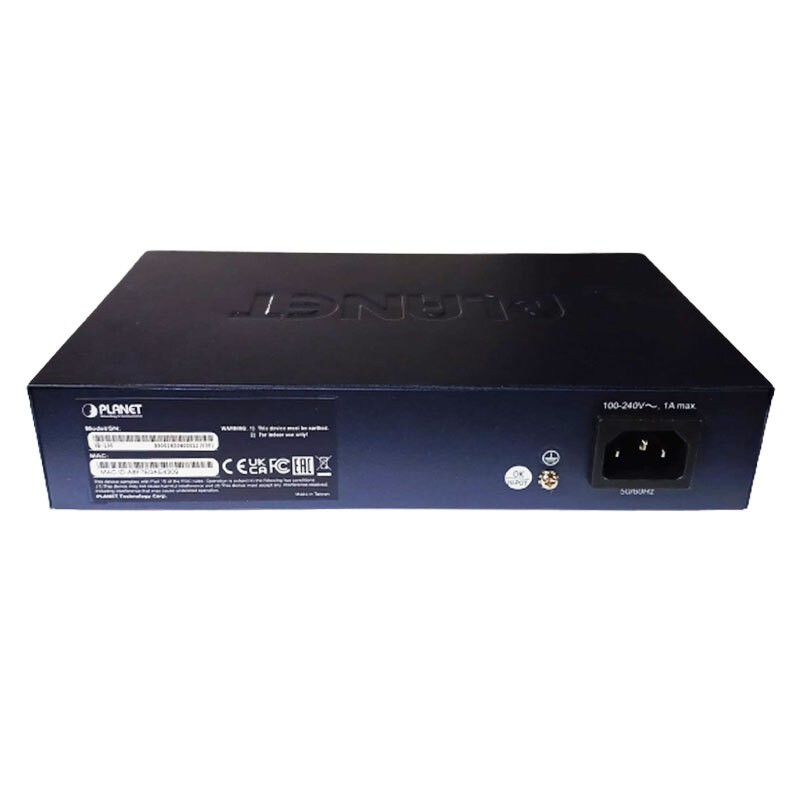

Firewall pre-configured with 4 Lan Ports has been customized to simplify installation in complex networks that need separate and organized management.

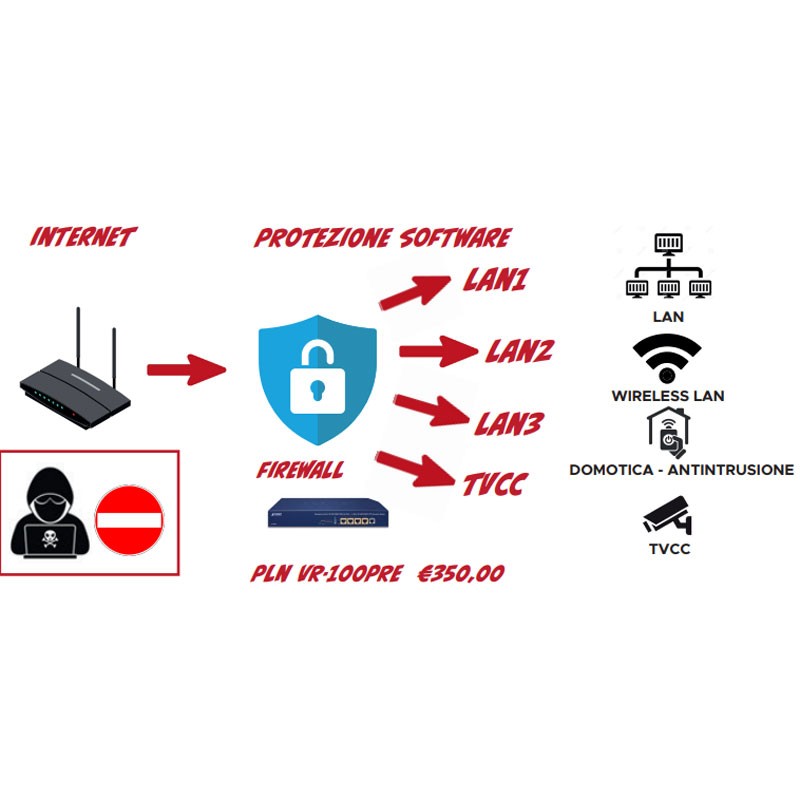

For applications Lan software protections, Wireless Lan, Home Automation, Intrusion Protection, Tvcc..

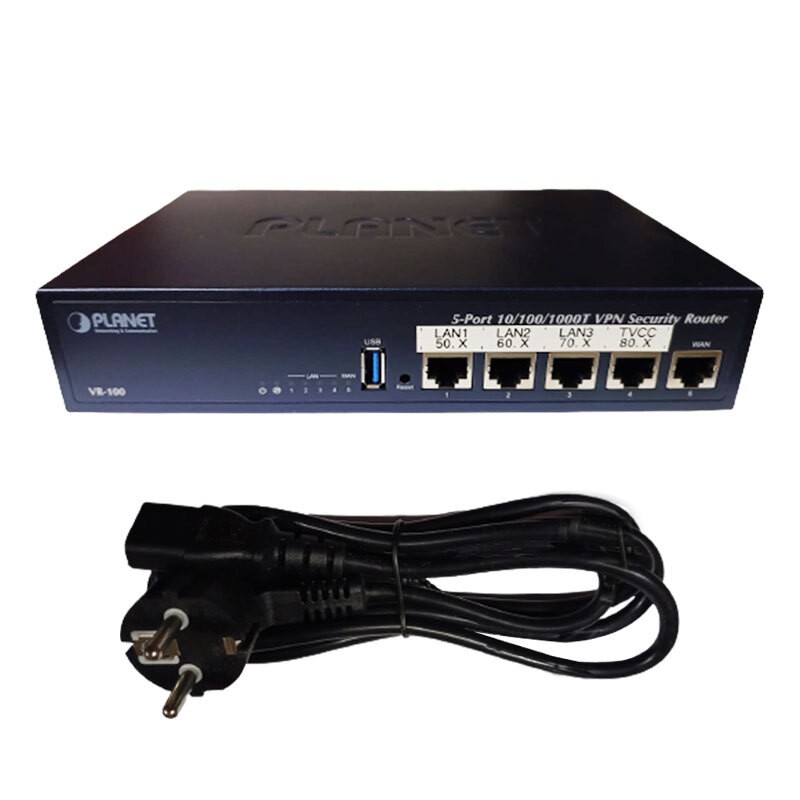

Customization involves the creation of 4 different networks with corresponding IP addresses. The router manages communication between the networks while leaving them separate for the purpose of management and smooth operation especially of Video Surveillance and IP Telephony networks that should always be kept separate from the corporate LAN.



LAN1:

• 192.168.50.1/24 with DHCP from 192.168.50.50 to 192.168.50.250 Assignable static IPs from 192.168.50.2 to 192.168.50.50.



LAN2:

• 192.168.60.1/24 with DHCP from 192.168.60.50 to 192.168.60.250 Assignable static IPs from 192.168.60.2 to 192.168.60.50



LAN3:

• 192.168.70.1/24 with DHCP 192.168.70.50 to 192.168.70.250 Assignable static IPs 192.168.70.2 to 192.168.70.50



CCTV:

192.168.80.1/24 with DHCP from 192.168.80.50 to 192.168.80.250 Assignable static IPs from 192.168.80.2 to 192.168.80.50.



The router has not undergone any changes to the original firmware but only a pre-configuration so in case of reset the pre-configuration will be lost and it will be necessary to request assistance to restore it.
