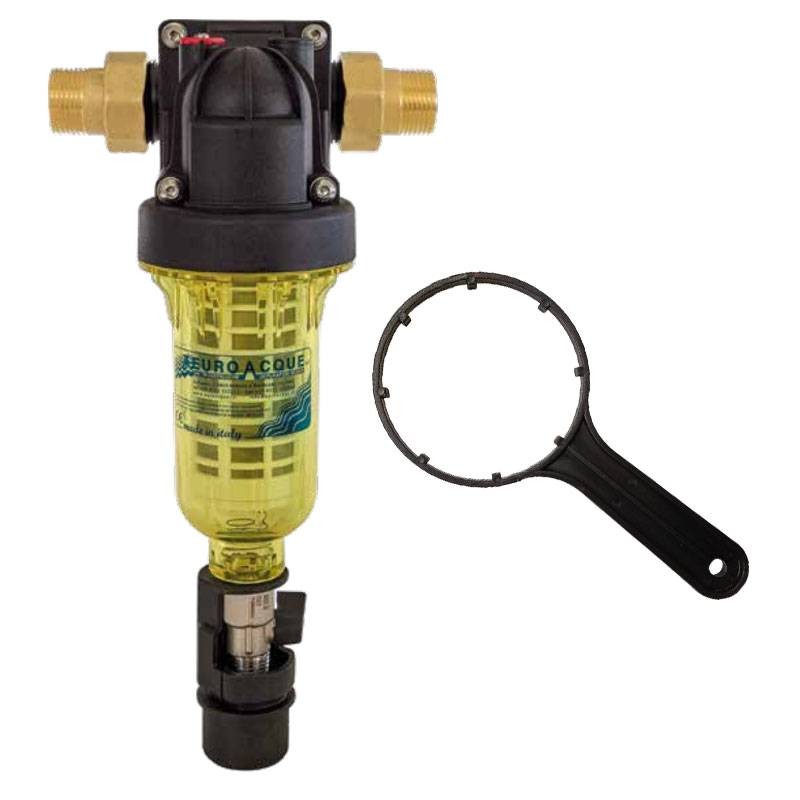

Euroacque HF semi-automatic rotatable filter M 1 inch HF000001
EUQ HF000001
8059617081287
Euroacque semi automatic self-cleaning rotatable filter with the following features:
- Connection: Male
- Fittings: 1 inch
- Flow rate lt/minute : 70
- PN: 12 BAR
- Filter capacity: 60 micron
- Max water temperature: 65 degrees
- Head material: PPGF30
- Vessel Material: PMMA
- Cartridge Material: Stainless steel
Disassembly/opening wrench included in the package.
Cyclone operation with helical flow in service.
Euroacque HF semi-automatic rotatable filter M 1 inch HF000001
€143.63
€143.63
Tax included
Tax included
Items Available: 10
: 4
The scope of supply includes: 360-degree rotatable head, brass pipe connections with built-in check valve, fiberglass-reinforced plastic body, stainless steel cartridge with helical system, transparent bowl, semi-automatic discharge to activate backwash, and maintenance datebook.
It is a state-of-the-art equipment in the field of semi-automatic self-cleaning cyclone filters as, in addition to the discharge of the collected dirt, with its backwash system it ensures effective and real cleaning of the filter cartridge as well. All that is required to clean the filter element is to open the drain located at the bottom of the vessel; this simple operation activates the backwash system.
Each time the drain is operated, the system is activated: water filtration for washing + automatic draining + automatic backwashing. The conformation of the cartridge then tends to convey dirt to the bottom of the bowl through a cyclone effect thus facilitating the accumulation of the filtrate at the bottom of the bowl. Includes key disassembly/opening pot.
There are no reviews
Data sheet
- Type:
- Water Filters
- Connections:
- 1 inch
