The Watts OneFlow® OFTWH Kit with WHOF1 Self-Cleaning Filter is an advanced solution for scale prevention and sediment removal in plumbing systems. This system combines OneFlow® technology with the WHOF1 self-cleaning filter, offering complete protection for household pipes and appliances, consists of:
1 OFTWH Water Softener System with a rated flow rate of 38 Liters/minute
1 WHOF1 self-cleaning water filter with backwash system for effective sediment removal
DN 3/4 inch Female connection
Watts OFTWH kit is the effective solution for protecting water systems, equipped with WHOF1 self-cleaning filter and advanced anti-scale system to ensure quality water.
The OFTWH Water Softener system built into the kit is designed to effectively reduce scale in pipes and appliances. This ensures longer system life and optimal water quality.
The WHOF1 filter is the heart of the kit, featuring a self-cleaning system that removes impurities without the need for frequent disassembly. This makes it ideal for those seeking a practical and reliable solution for water treatment.
Perfect for domestic and commercial water systems, the Watts OFTWH kit is compatible with a wide range of systems. It can be used to protect boilers, washing machines, dishwashers, and other appliances from problems related to limescale and impurities.
Thanks to the user-friendly design, installation of the kit is quick and intuitive. In addition, the self-cleaning technology minimizes maintenance work, making it a practical and convenient choice for professionals and home users.

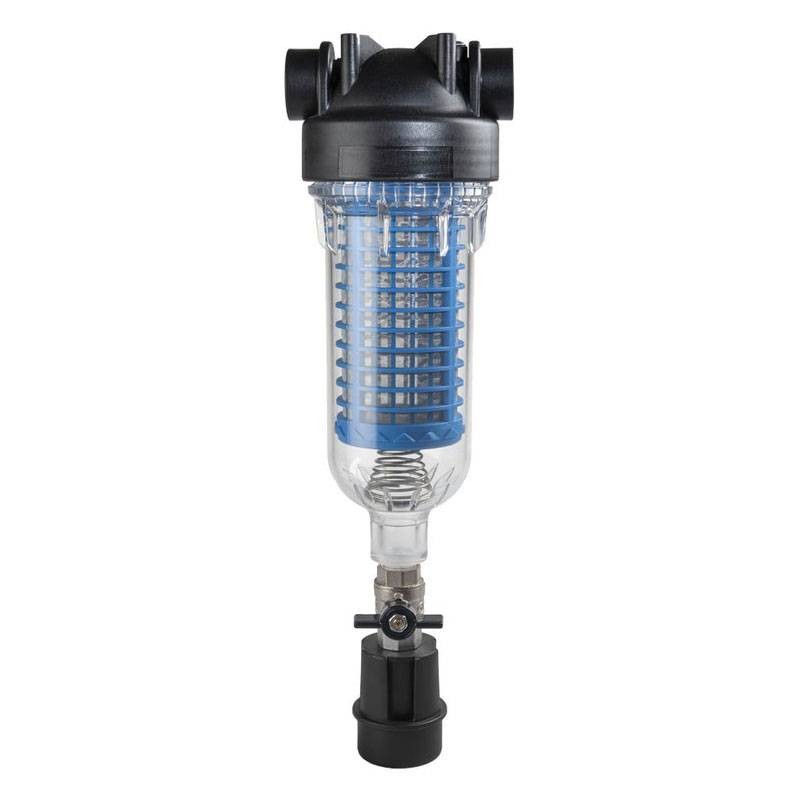

Self-cleaning water filter with backwash system for effective sediment removal. Suitable for all OneFlow models. 1 FF header connection. Included in package adapters for ¾ and 1 ¼ connections.
Manually activated backwash by opening the drain valve.
Transparent PET container. Reinforced polypropylene header.
Stainless steel mesh cartridge 90 mcr included
Discharge funnel with backflow anti-pollution system
Maximum operating temperature: 45°C (113° F)
Maximum operating pressure: 8 bar (116 psi)
Accessories included: wall bracket with screws and disassembly wrench
Dimensions 390x120x107 mm

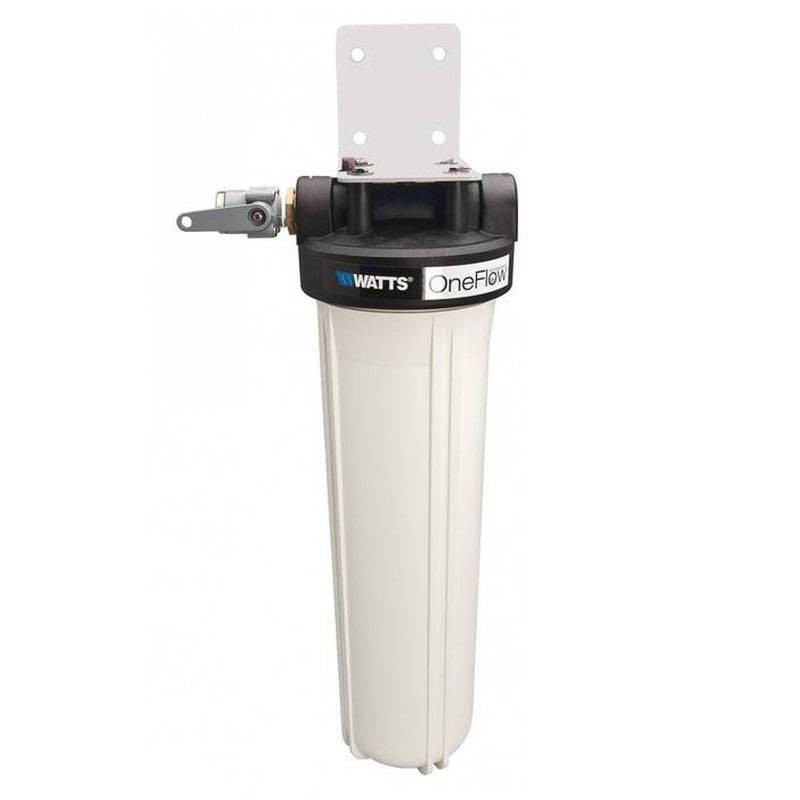

The innovative OneFlow® scale control system prevents deposits from forming on the interior surfaces of plumbing fixtures. OneFlow® is a single-cartridge system to be installed at the cold water supply, upstream of a single water heating device (water heater or instantaneous water heater) that it is essential to protect from the damaging effects of hard water.
OneFlow® uses innovative Template Assisted Crystallization (T.A.C.) technology to retain the minerals responsible for water hardness and converts them into microscopic inert crystals that remain suspended in the water before being purged. Maintenance is super simple, and the system requires no backwashing, salts, or electricity. The damaging effects of hard water, particularly limescale buildup in heating elements, pipes, water heaters, and boilers, will no longer be a problem. OneFlow® is not a softener and does not involve the addition of chemicals. It is a device for the prevention of hard scale deposits with an effectiveness proven both by independent laboratory tests and by the excellent results obtained in years of application in residential and commercial settings, as well as in the restaurant industry. OneFlow® is a smart solution against limescale, the perfect alternative to softening systems and chemical treatment.
Install the OneFlow® anti-scale system on the cold water line, upstream of the network/plant to be treated. The system should be sized according to the maximum or nominal flow rate as indicated in the specifications of the device in question. It is also possible to install the OneFlow® system to protect multiple pieces of equipment from the damaging effects of limescale and hard water, taking care to verify the total maximum flow rate of the devices to be protected. Provide a bypass to allow the system to be isolated in case of maintenance or cartridge replacement. Bypass is recommended but not mandatory. Install the system in an area large enough to allow maintenance operations. Once activated, the OneFlow® system wastes no water for backwashing, rinsing, and regeneration and requires no chemical additives or electricity to operate
Features:
OneFlow® converts hardness minerals into microscopic inert crystals and is, therefore, a viable alternative to classic water softeners
Low maintenance requires no salts or chemical additives
Does not require the use of electricity (unlike other scale control technologies)
Helps reduce water and electricity consumption, does not require a control valve
Innovative technology for greater environmental friendliness, no use of salts or chemical additives
Improves efficiency of all heating devices and sanitary system components
Simple sizing and installation standard 3/4 fittings
The perfect solution for protecting household equipment, extending its life and limiting energy consumption
Maintenance of OneFlow® cartridge systems is super easy: just replace the CT cartridge once every two years

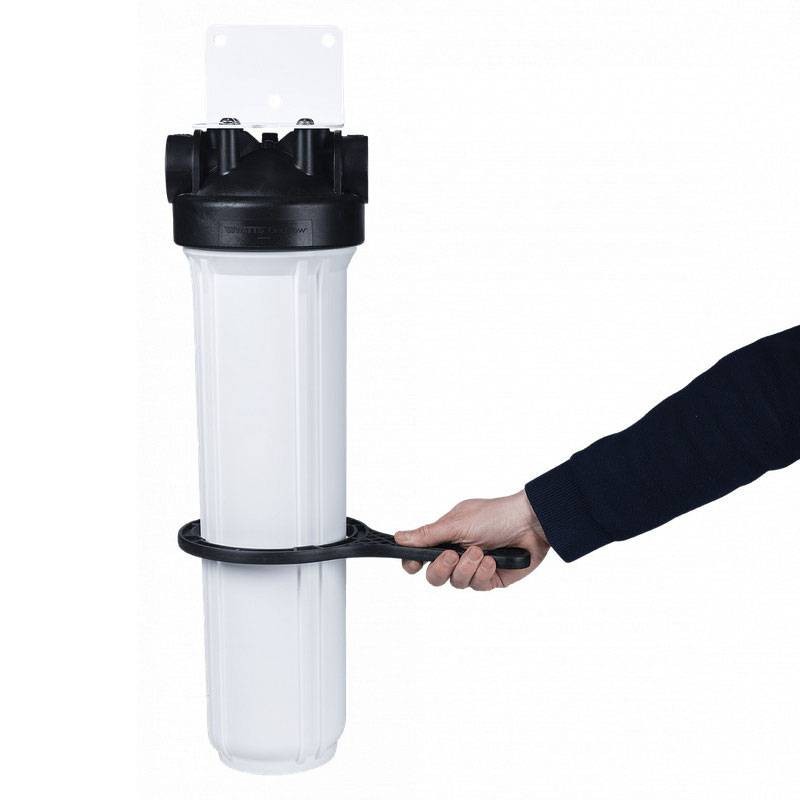

Mounting bracket and key for cartridge replacement included in delivery
| Feature | Detail |
|---|---|
| pH | 6.5 - 8.5 |
| Hardness (maximum) | 28.8°dH, 51.3°F (513 mg/L CaCO3) |
| Water pressure | 1.03 - 6.2 bar |
| Temperature | -5/+38°C |
| Free chlorine | < 2 mg/l |
| Iron (maximum) | 0.3 mg/l |
| Manganese (maximum) | 0.05 mg/l |
| Copper | 1.3 mg/l |
| Oil and H2 | Must be preventively removed |
| Total polyphosphates | < 3.0 mg/l |
| Silica (maximum) | 20 mg/l |
| Fixed residue TDS | 1500 mg/l |
