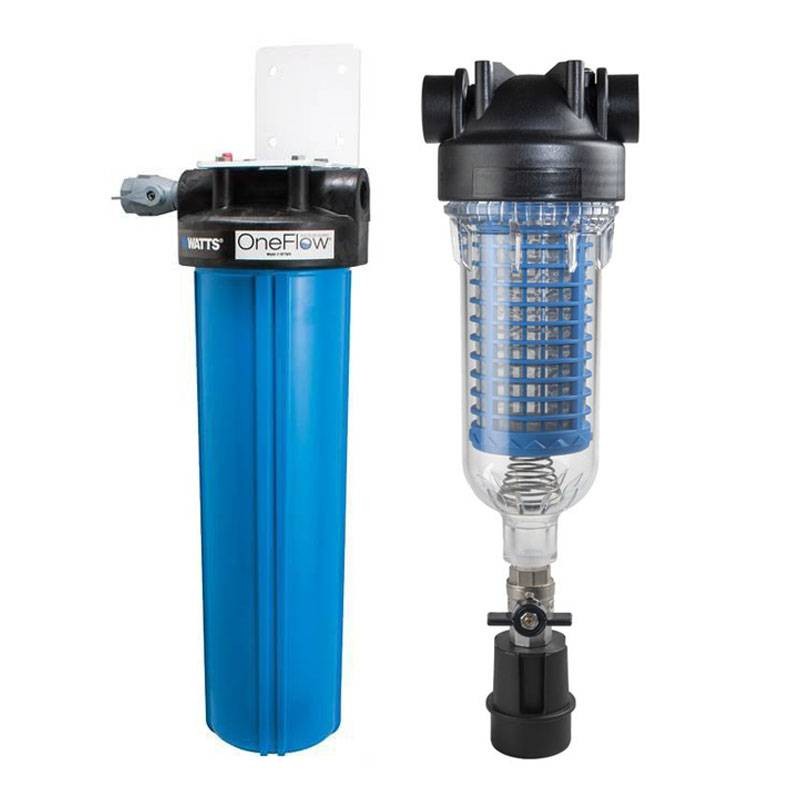

Watts OneFlow® OFTWH-R Kit with WHOF1 Self-Cleaning Filter:

The Watts OneFlow® OFTWH-R Kit with WHOF1 Self-Cleaning Filter is designed to protect residential and commercial plumbing fixtures from scale and sediment. It uses OneFlow® technology to prevent scale formation, improving energy efficiency and appliance life. The WHOF1 self-cleaning filter removes sediment and protects pipes, ensuring long system life and reducing the need for maintenance.

Key features:

• OneFlow® Technology: Uses pattern-assisted crystallization (TAC) to transform calcium and magnesium minerals into inert crystals, preventing scale formation.
• WHOF1 self-cleaning filter: Backwash system that removes sediment in the water, improving the quality and reliability of the system.
• Reduced maintenance: No need for salts or chemicals, or electricity, reducing operating costs and environmental impact.
• Simple installation: Easy to install upstream of heating or plumbing systems, with standard 3/4" fittings



Recommended applications:

• Heating systems: Prevention of scale buildup on boilers, radiators and piping, increasing efficiency and reducing maintenance costs.
• Domestic plumbing systems: Protection of faucets, showers and other fixtures, keeping water clean and free of sediment.
• Commercial applications: Perfect for offices, hotels, and restaurants, where water quality is critical to user comfort



Kit Component Specifications:

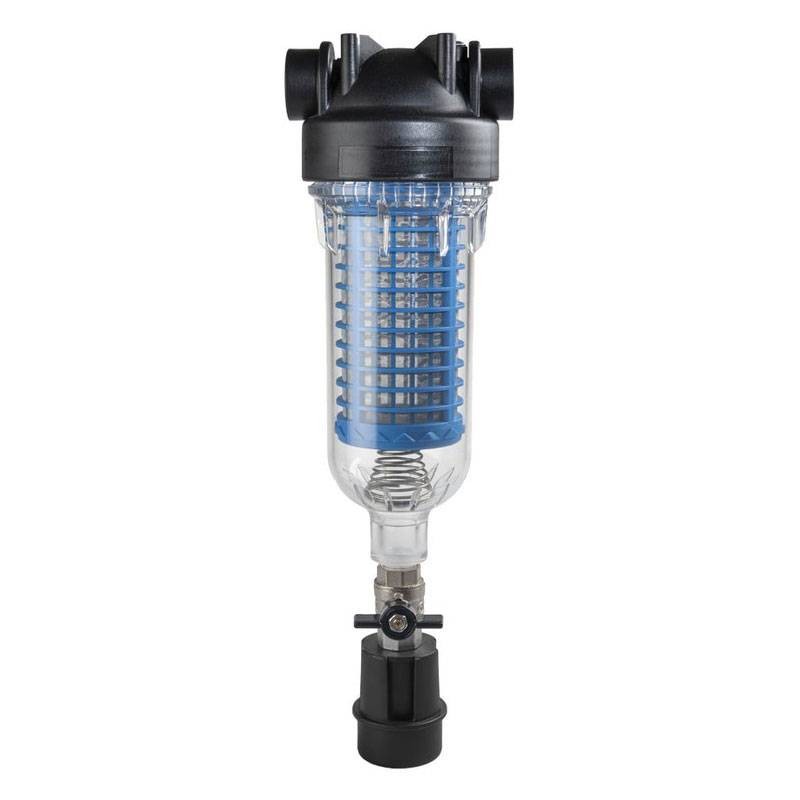

WHOF1 Self-Cleaning Filter

Self-cleaning water filter with backwash system for effective sediment removal. Suitable for all OneFlow models. 1 FF header connection. Included in the package are adapters for ¾ and 1 ¼ connections.

• Backwash manually activated by opening the drain valve

• Transparent PET container. Reinforced polypropylene header

• Stainless steel mesh cartridge 90 mcr included

• Discharge funnel with backflow anti-pollution system

• Maximum operating temperature: 45°C (113° F)

• Maximum operating pressure: 8 bar (116 psi)

• Accessories included: wall bracket with screws and disassembly wrench

• Dimensions 390x120x107 mm



OFTWH-R anti-scale system:

The innovative OneFlow® scale control system prevents deposits from forming on the interior surfaces of plumbing fixtures. OneFlow® is a single-cartridge system to be installed at the cold water supply, upstream of a single water heating device (water heater or instantaneous water heater) that it is essential to protect from the damaging effects of hard water.

OneFlow® uses innovative Template Assisted Crystallization (T.A.C.) technology to retain the minerals responsible for water hardness and converts them into microscopic inert crystals that remain suspended in the water before being purged. Maintenance is super simple, and the system requires no backwashing, salts, or electricity. The damaging effects of hard water, particularly limescale buildup in heating elements, pipes, water heaters, and boilers, will no longer be a problem. OneFlow® is not a softener and does not involve the addition of chemicals. It is a device for the prevention of hard scale deposits with an effectiveness proven both by independent laboratory testing and by the excellent results obtained in years of application in residential and commercial settings, as well as in the restaurant industry. OneFlow® is a smart solution against limescale, the perfect alternative to softening systems and chemical treatment.

Features:

• DN 3/4 inch Female connection

• Nominal flow rate 23 liters/minute

• Weight 5.7 kg

• OneFlow® converts hardness minerals into microscopic inert crystals and is, therefore, a viable alternative to classic softeners

• Low maintenance requires no salts or chemical additives

• Does not require the use of electricity (unlike other scale control technologies)

• Helps reduce water and electricity consumption, does not require a control valve

• Innovative technology for greater environmental friendliness, no use of salts or chemical additives

• Improves efficiency of all heating devices and sanitary system components

• Simple sizing and installation standard 3/4 fittings

• The perfect solution for protecting household equipment, extending its life and limiting energy consumption

• Maintenance of OneFlow® cartridge systems is super easy: just replace the CT cartridge once every two years

• Mounting bracket and key for cartridge replacement included in delivery
