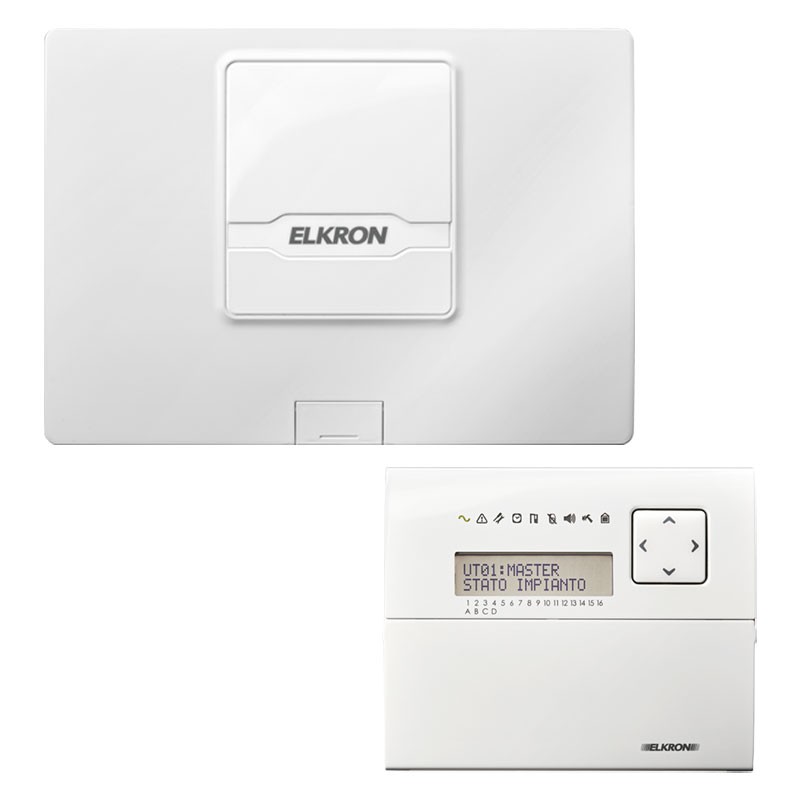

Component Specifications:



Intrusion control panel with built-in, multifunction LAN port, ideal for applications in residential, private, commercial or public facilities. Scalable structure with bus architecture , native LAN connection with possibility of adding optional communication modules.



Designed for ease of commissioning and installation flexibility:

• 6 inputs + 2 "Prio" points + 1 24h input
• 2 outputs: 1 relay + 1 open collector
• Max no. points (in/out) manageable by the system : 100
• 1 +SR output for powering self-powered devices
• 1 RS485 bus
• Available ports: LAN + USB B
• Partialization up to 16 sectors
• Management by scenarios: max 40
• Max. number of events in memory: 4000
• Max no. of users/keys: 150/150
• Integrated Web server
• Switching power supply 1.5 A
• Housable accumulator: 12 Vdc - 7 or 9Ah
• Dimensions: (H x W x D): 238 x 340 x 90 mm
• EN50131 grade 2 certification



Benefits of the control unit:

• Large computing and processing capacity
• 1 GB RAM and 2 GB FLASH
• RTC (Real Time Clock) active even in case of temporary disconnection of the power sources of the central unit
• Audio codec circuit for voice message playback
• Circuits for measuring currents and voltages (diagnostics)
• Battery charge control
• Protection of the electronic board by a plastic cover
• Self-resetting fuses to protect the power outputs
• LAN and USB-B communication ports integrated on the board
• Slot for connection of optional modules PSTN, 2G, 4G, Wi-Fi
• Dedicated connector for radio expansion
• RS485 field bus
• Input reserved for sabotage line
• +SR terminal for powering self-powered devices



Top Functions:

• PrIO: Allows a point (terminal) in the system to be configured as both an input and an output
• Tandem: Allows a single physical input to distinguish the alarm status of two different detectors
• Programming of balancing resistor values: For each input, it allows a single- or dual-type balancing resistor value to be customized
• Battery control and charging: Manages the load and constant control of the buffer battery



MP3000 can manage home automation functions such as temperature control, load control, shutter motor control, etc., because it is compatible with Elkron's ZigBee 2.4 Ghz radio peripheral devices. This mechanism is possible thanks to a Mesh Network, i.e., a wireless network where nodes act as repeaters, extending the signal coverage; devices are connected to each other and in case of signal loss, the reference device will reach the central unit through alternative paths



KNX® DOMOTICS:

• The MP3000 system interacts with home automation devices connected to the Konnex® bus through a two-way interface.



VOICE CONTROL:

• System functions can also be operated through voice commands using smart speakers. (Functions with Alexa andHey Google).



Video surveillance:

• MP3000 operates a range of 2.4Ghz ZigBee radio detectors with an on-board camera, capable of sending photos or videos in case of an alarm on the My Elkron Key app. The user can also view live footage from Elkron IP cameras connected on the same network as the control panel over LAN or Wi-Fi. The association between an input of the central unit and a camera will allow the latter to generate, upon an alarm, snapshots or video clips that can be sent to the user app or, if an NVR or SD card is present on the camera, the same can be accessed later through the alarm playback mode



Connections:

• MP3000 is an IP native system, connectable to the Internet through the available LAN port. As an alternative or backup to the main connection, plug&play Wi-Fi or GPRS/4G type communication modules can be used. The MP3000 system also interacts with traditional PSTN and/or GSM carriers with TTS (Text to Speech) technology for sending voice messages or SMS messages



MP3000 offers various solutions for communicating with system peripherals:

• RS485: Robust BUS with adjustable speed without special constraints on wiring types
• WIFI: Wi-Fi interface to connect the central unit to the network infrastructure
• ZIGBEE: ZigBee module to integrate camera detectors and home automation devices into the system
• Two-way RF Radio Module to expand the system through wireless intrusion prevention devices



Features:

• Number of manageable IN/OUT points 100
• On-board inputs 6
• Sabotage input (24h) 1
• Bardo outputs 1 relay + 1 OC
• SR power supply (for self-powered devices)
• Points (IN/OUT) "PrIO" on board 2
• RS485 Field Bus 1
• Lan port 1
• USB port type B 1
• RTC clock chip
• RF expansion connector 1
• Battery charge control
• Batteries 7ah/9ah not included
• Box dimensions 238x340x90mm
• Certifications EN50131 3 6 grade 2 class II
• EN50136 SP6, DP2



Functions:

• Radio devices that can be managed by the system: 100 Detectors - 32 Remote Controls - 4 Keypads - 4 External Sirens
• Home automation/security Zigbee devices manageable by the system 40 Total including 6 photo/video
• Tandem function
• Sectors 16
• Scenarios 40
• Event memory 4000
• Users 150
• Keys 150
• Automatic BUS peripheral learning
• Built-in Web server
• TTS (text to Spech)
• Annual/perpetual time scheduler
• IP cameras 16 max
• IP NVR management
• Konnex Gateway Management
• NTP automatic clock synchronization
• Remote system upgrade



Expandability:

• Wired I/O expansions 20
• Radio expansions 4
• Zigbee Expansions 1
• Keypads on Bus 16
• Proximity readers on Bus 32
• Bus Sirens 8



Communication:

• Internet connectivity (IP)
• Communication protocol both IP and DC09
• Communication protocol both DTMF-DC05
• Voice messages (TTS)
• SMS messages
• Push notifications
• E-mail notifications
• Video clips and pictures



KP3000-D LCD Keyboard:

• 2 x 16 LCD display
• Contrast and brightness adjustment
• Adjustable sound level buzzer
• 7 navigation keys, 3 function keys, 12 alpha-numeric keys
• 9 signal LEDs
• 2 programmable PrIO terminals on board
• Complies with EN50131 grade 3 class II
• Dimensions (W x H x D): 151 x 125 x 29 mm
