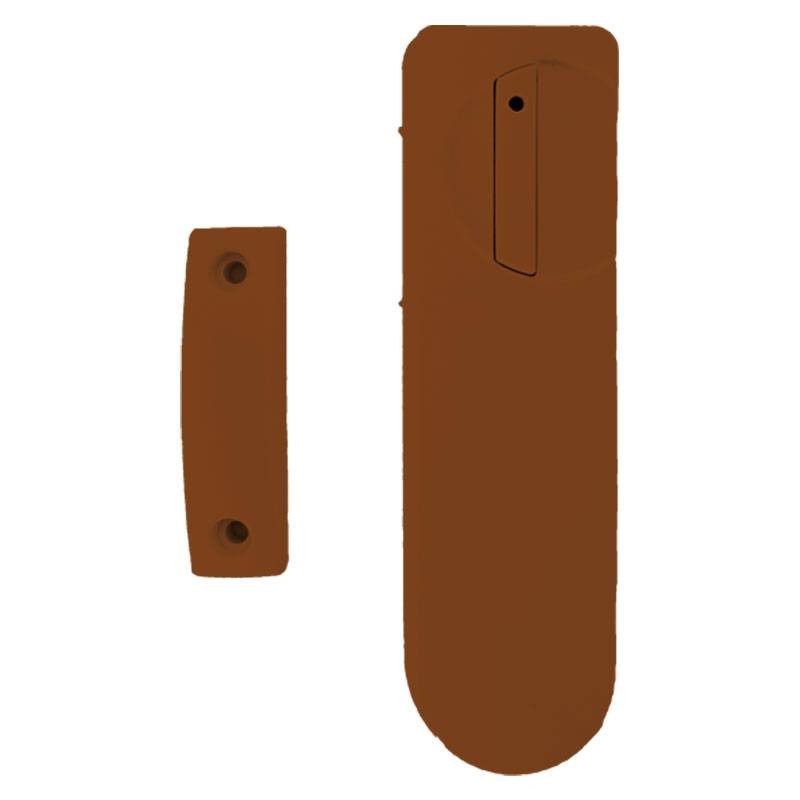

Elkron DC600/BR Battery-Powered Slim Magnetic Contact Brown 80MM1F00113

Brand: Elkron

Code: EKO 80MM1F00113 EAN: 8034034445416

Slim Elkron DC600/BR battery-operated magnetic contact compatible with ER600 radio expansion and EGON radio system:

Power supply: 1 lithium battery 3V type CR2
Battery life: 10 years (typical value, may vary with use)
Two-way radio frequency: 868.6375 MHz
Operating temperature: -10 °C to +45 °C
Dimensions (H x W x D): 85 x 25 x 20 mm
Weight: 100 grams
Performance level: EN50131 Grade 2 Class 2

Data sheet Elkron 80MM1F00113

Elkron DC600/BR Battery-Powered Slim Magnetic Contact Brown 80MM1F00113

€49.90

Elkron DC600/BR Battery-Powered Slim Magnetic Contact Brown 80MM1F00113

€49.90
Tax included

Items Available: 1

Further availability of the manufacturer

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Frequently bought together

Rechargeable battery Beghelli CR2 Lithium 260mAh 8872

BEG 8872

€11.42

Elkron ER600 wireless bus interface for MP500 systems 80WL2410111

EKO 80WL2410111

€114.14

Description

Overview:

The DC600/BR mini magnetic contact controls the opening/closing of specific devices (e.g., a door or window). The contact is fixed on the door or window frame, while the actuating magnet is to be fixed on the door or window itself. When the door or window is opened, the magnet moves away from the contact, triggering the internal magnetic switch and activating the transmission of an alarm signal to the control panel. The device also has the ability to send information regarding anomalies and low battery warning

The contact consists of a cover and a base. The cover contains all the electronic components, while the base is used to install the device. An internal tamper switch provides protection against unauthorized attempts to open or remove the device.

Accessories included:

1 Magnet
2 Screws
2 Dowels
1 Double-sided adhesive tape for magnet
2 Magnet mounting screws
2 Spacers for magnet

Supervision:

In normal operation, the contact transmits a supervision signal to the control panel at intervals of 30 to 50 minutes
If the supervision test in the control panel has been activated and the control panel does not receive the signal from the contact within a set time, the control panel will generate a supervision alarm.

Tamper switch:

Protects against attempts to remove or open the enclosure. When the tamper is open, the contact sends an alarm signal to the central unit and the LED lights up

Battery:

The contact is powered by a CR2 3 V lithium battery and can signal when the battery is low. When the battery is low, the device sends a signal to the control panel along with the normal transmission. The LED lights up when the contact is in low battery alarm. When the battery is fully discharged, the contact no longer signals alarms and the LED flashes every 4 seconds

Test Mode:

The contact can be set in Test mode for 3 minutes by pressing the Test button on the front cover once. In Test mode, the LED lights up whenever the contact is activated. Whenever the Test button is pressed, the contact will send a signal to the control panel for a radio range test and re-activate the Test mode again for 3 minutes. Test mode will automatically end after 3 minutes and return to normal operation mode

Features:
