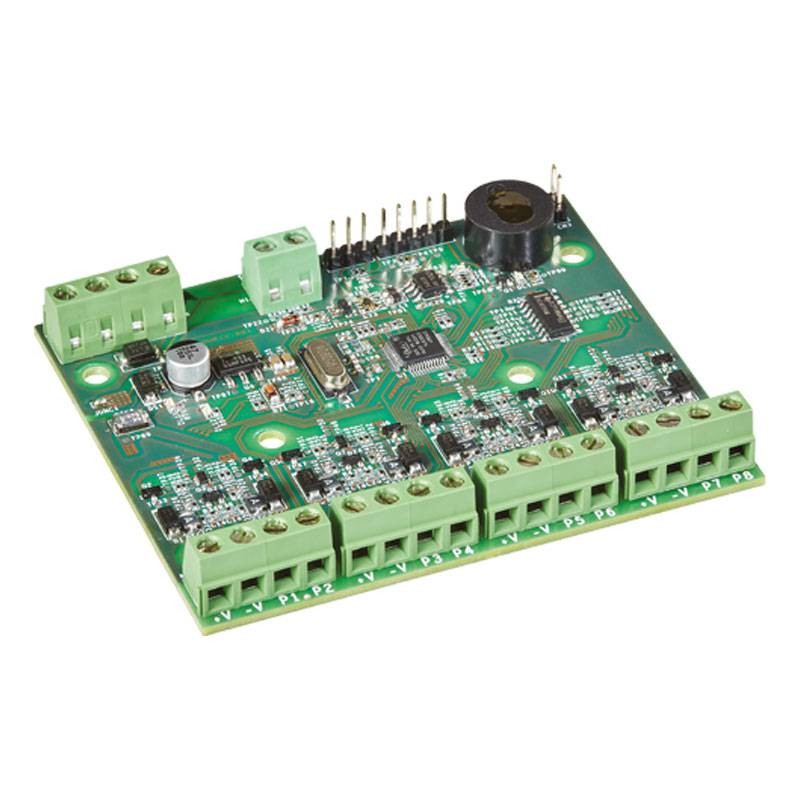

Elkron EP3008 8-Point Wired Expansion Board on Bus 80MP7L00211
EKO 80MP7L00211
8034034448295
Wired expansion board on Elkron EP3008 Bus, 8 points allows to increase the amount of inputs and/or outputs managed by the system:
- 8 PriO points (IN/OUT)
- 1 tamper input
- 8 PriO status LEDs
- Buzzer
- Housed inside optional CP/EP500 and CP/EXP enclosure protected against opening and removal
- EN50131 grade 2 class II certification
Elkron EP3008 8-Point Wired Expansion Board on Bus 80MP7L00211
€70.16
€70.16
Tax included
Tax included
Items Available: 25
: 1
Frequently bought together
LEP3008 is an expansion module equipped with 8 points (PrIO) that can be individually programmed as input or output. The module is connected to the control panel via BUS.
Mounting:
- The expansion can be mounted inside the control panel or in CP/EXP wall boxes, with the tamper connected to the TAMPER input, or CP-EP500. It can be installed inside distribution boxes or similar containers, adequately protected by tamper devices (tamper).
Bus Connection:
- The expansion can be connected on the bus in cascade, star, or mixed mode. The location along the bus does not matter. The total length of the bus leg should not exceed 500 meters (cable sect. 2x0.75 mm² power + 2x0.22 mm² data). Connect the expansion to the bus using terminals + A, B. When counting the overall system consumption, consider the max consumption of the expansion and also of the devices connected to it.
There are no reviews
Data sheet
- Type:
- Expansion Cards
