Elkron radio burglar alarm kit with central unit CR600WF 868MHz 80KT3000113
EKO 80KT3000113
8034034447274

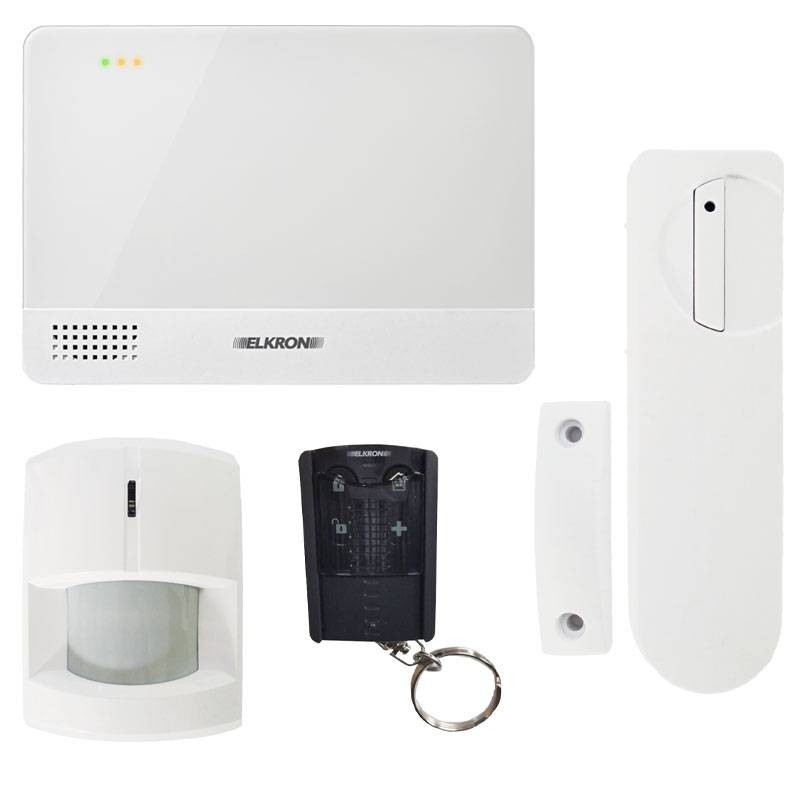

Elkron radio burglar alarm kit consisting of:
- 1 Piece Central unit CR600WF IP/Wi-fi/4G with power supply code 80WL6000113
- 1 Piece Passive infrared detector IR600 code 80IR2E00113
- 1 Piece DC600 slim magnetic contact 80MM1E00113
- 1 Piece Remote control RC600 code 80TX4400113
Elkron radio burglar alarm kit with central unit CR600WF 868MHz 80KT3000113
€450.87
€450.87
Tax included
Tax included
Items Available: 8
: 1
Frequently bought together
Technical specifications of individual components:
IP/WIFI/4G radio control panel CR600WF: Radio control panel, multifunction for complete home and business management. An ABS body with a glossy white front, small size and great attention to detail: the elegant line and small size allow the new Egon control panel to be placed in any room of the house. Not only aesthetics but also elevating performance: in fact, the real strength of Egon control panels is their connectivity to the outside world, through a native IP connection with 4G backup
- Power supply: 230VAC /9V 1A Internal power supply + rechargeable battery 4.8V Ni-Mh, 1100 mAh
- Autonomy: 15 hours (averages dependent on usage conditions)
- Transmission carriers: LAN + 4G in automatic backup + WIFI
- Radio communication type: RF Fq. 868MHz + ZIGBEE option Fq. 2.4GHz (1.2HA) both bidirectional
- Radio range: RF = 2km Zigbee = over 200m (both in free air)
- Built-in microphone/speaker for recording listening alarm voice msg
- Built-in 95dB siren at 1m
- Max number of devices: 80
- Max number of detectors with camera: 6
- Partialization: 3 sectors + total
- Max number of users: 20
- Max number of historical events: 200 app events, 250 local events
- Functionality: intrusion, fire, video control/video verification, home automation
- Video verification: with indoor and outdoor camera detectors
- Real-time video control: maximum 4 Wi-Fi IP cameras
- Local user control: remote control/keypads
- User remote control: Elkron EGON APP (iOS and Android) EGON web portal
- Installer remote control: APP Elkron EGON PROFESSIONAL (iOS and Android) EGON PROFESSIONAL web portal
- Programming: from PC connected on the same network or direct to the control panel
- Supervision: yes
- Jamming control: yes
- Complies with EN50131 Grade 2 Class II
- DIMENSIONS (H x W x D) 260 x 176 x 30 mm
Alarm sending type:
- VOICE call
- DTMF CID over GSM
- CID/ SIA over TCP/IP, over Ethernet or GPRS
- SMS over GSM
- Video and images over Email/FTP over IP/4G
- Push notifications
IR600 indoor infrared detector 80IR2E00113:
- Power supply: 1 CR123A 3V battery
- Battery life: 5 years (typical value, may vary based on use)
- Two-way radio frequency: 868.6375 MHz
- Infrared range: max 12m with 110° angle
- Operating temperature: -10/+45 °C
- Dimensions (W x H x D): 53.2 x 67x 89.2 mm
- Weight: 300 grams
- Performance level: EN50131 Grade 2 Class 2
- Compatible with ER600 radio expansion and EGON radio system
IR600 is a detector with a passive infrared (PIR) motion sensor that can detect movement in an assigned area and report it to the control control unit to trigger an intrusion alarm. The base of the product has provisions for holes that allow it to be installed on a flat surface or in a corner. The detector has a tamper switch that is activated when the cover is opened. It can also send an alert to indicate a communication or low battery problem. The detector is designed to operate with a detection range of 12 meters, mounted at a height of 2 meters from the ground.
Installation: The detector is designed to be mounted on a flat surface or in a corner using the supplied mounting screws and dowels. There are provisions for holes on the base, where the plastic is thinner and can be broken for the purpose of mounting. Two hole arrangements are for surface mounting, while four hole arrangements are for corner mounting.
Elkon RC600 4-button anti-theft remote control 80TX4400113:
- Keys (ON / OFF total / 1 partial / panic alarm)
- Sliding door key protection LED transmission and reception indication
- Low battery indication
- Power supply: 1 CR2032 3V lithium battery
- Battery life: 6 years (typical value, may vary with use)
- Two-way radio frequency: 868.6375 MHz
- Operating temperature: -10/+45°C
- Dimensions: 50 x 33 x 14.5mm
- Weight: 60 grams
- Complies with EN 50131 Grade 2 Class 2
White micro contact DC600 80MM1E00113: Small size magnetic contact, compatible with ER600 radio expansion and EGON radio system
- Power supply: 1 lithium battery 3V type CR2
- Battery life: 2 years (typical value, may vary with use)
- Two-way radio frequency: 868.6375 MHz
- Operating temperature: -10 °C to +45 °C
- Dimensions (H x W x D): 85 x 25 x 20 mm
- Weight: 100 grams
- Performance level: EN50131 Grade 2 Class 2
There are no reviews
Data sheet
- KIT: Burglar alarm kits
- Type: Control units
- System: Wireless
- Installation: Internal
