Hiltron XM hybrid 4 zone burglar alarm kit with console XMR2000
C1A KXMR2000T
8056450414074

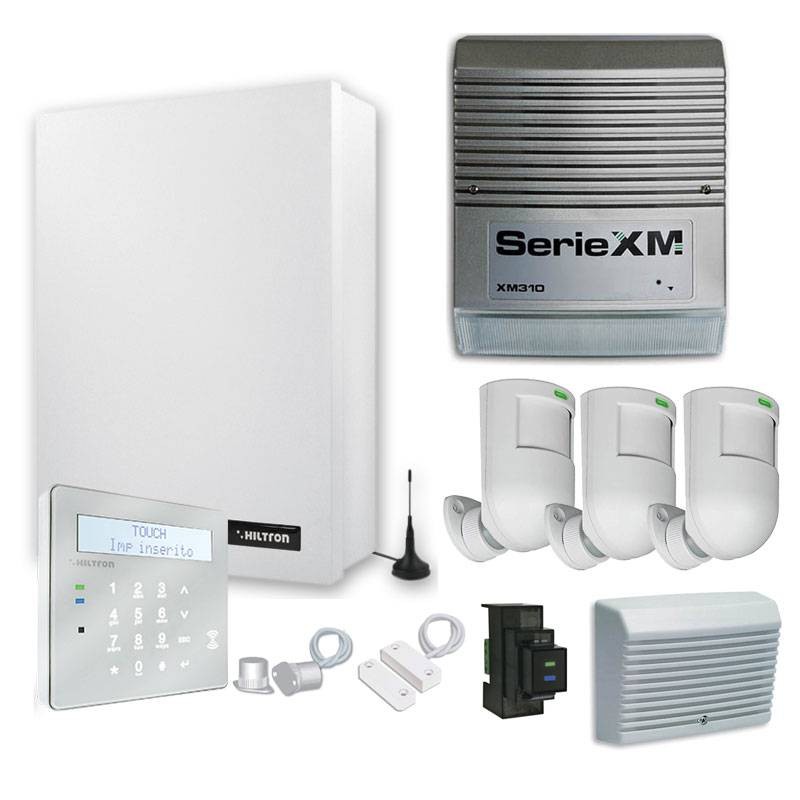

Hiltron XM hybrid burglar alarm kit 4 wired zones 64 MPX points/via radio for 4 systems, integrated GSM/LAN, consisting of:
- 1 XMR2000T Hybrid Control Unit.
- 1 XMTOUCHB Console
- 1 XM310 External Self-powered Siren
- 3 Dual technology detectors XM12DG
- 1 XM200K Keyx Key Proximity Reader
- 1 SP31 self-powered indoor siren
- 1 XM56 flush-mounted magnetic contact
- 1 XM58 external magnetic contact
Hiltron XM hybrid 4 zone burglar alarm kit with console XMR2000
€759.14
€759.14
Tax included
Tax included
Items Available: 24
: 4
Frequently bought together
Kit parts specifications:

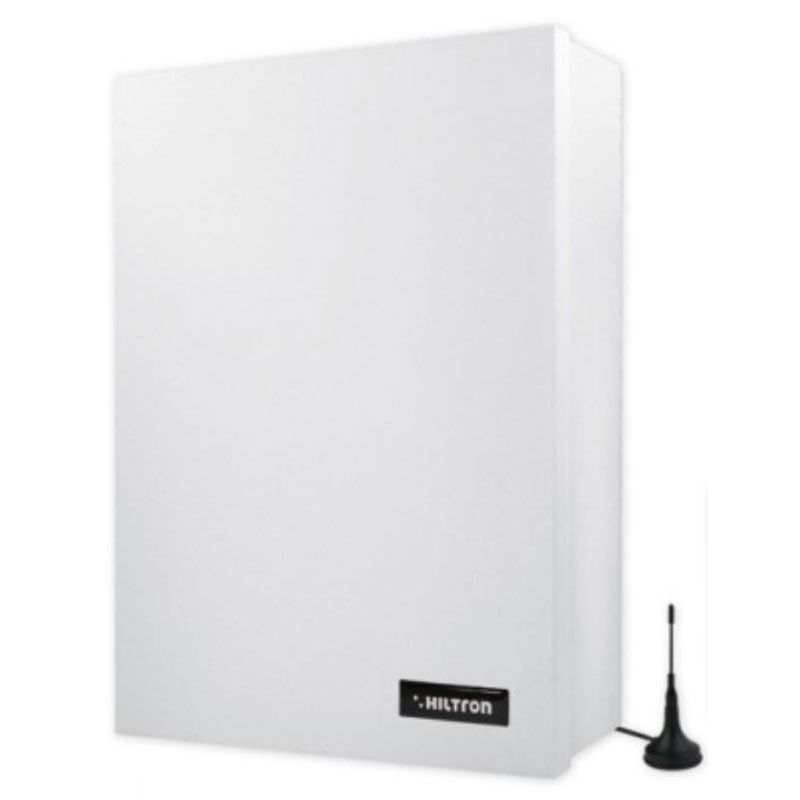

Hybrid control unit 4 wired zones 64 points MPX/via radio for 4 systems, integrated GSM/LAN, XMTOUCHB console included:
- 24h anti-sabotage zones 64
- Installations that can be managed independently 4
- Areas per plant 4
- Backlit LCD alphanumeric display (2×16 characters)
- Entry modes per plant 4
- White color
- Security grade 1
- Environmental class 2
- Console with input 2 (1 built-in + 1 additional)
- Maximum number of users 8
- User levels 4
- Event memory 100
- Rated supply voltage 230V
- Max deliverable current 170mA
- Control and limitation of battery charging current 500mA max
- Output time adjustment 1 ÷ 350sec
- Adjusting input time 1 ÷ 350sec
- Adjusting alarm duration 180 ÷ 600sec
- Gong repetition adjustment 5 ÷ 600sec
- Alarm output NO/NC 500mA max
- Logic output int 12v 1
- Alarm duration 24h 180 ÷ 600sec
- ABS Container
- Dimensions (W) 245mm - (H) 285mm - (D) 77mm

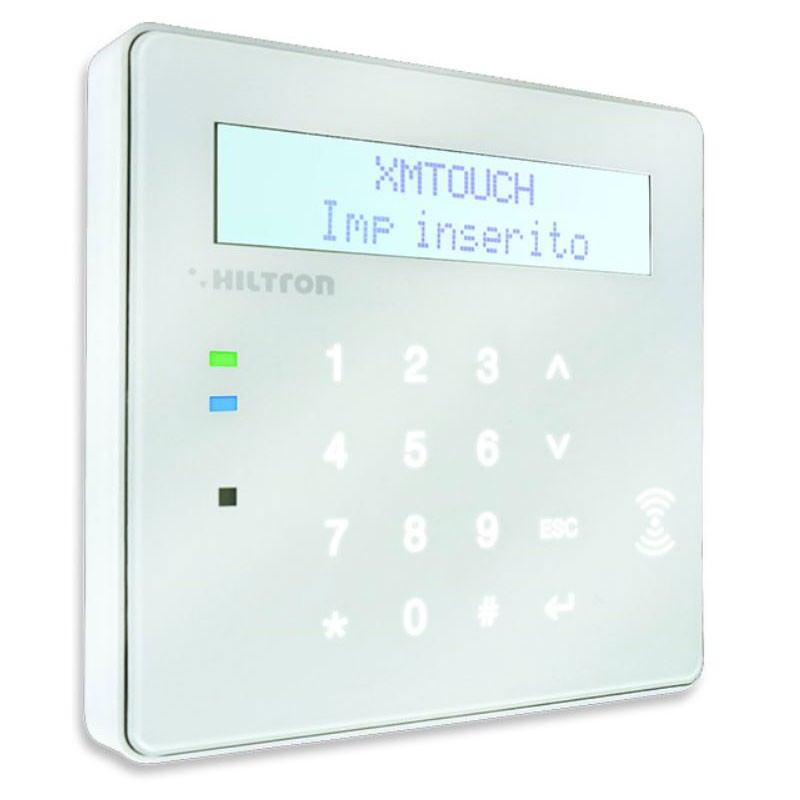

XMTOUCHB Console:
- Compatible with SeriesXM control panels
- Elegant design flat touch and backlit keys
- White color
- Installation with preparation for 503 wall box
- Backlit alphanumeric LCD display (2×16 characters)
- Maximum current consumption 250mA
- Rated supply voltage 12V
- Tamper protection anti-opening and anti-tear
- Signal LEDs 2
- Approach sensor with display illumination
- Power consumption 150mA
- Safety grade 1
- Environmental class 2
- IP degree of protection IP40
- Conforms to IEC EN 50131-1 standard
- Dimensions (W) 132mm - (H) 132mm - (D) 20mm

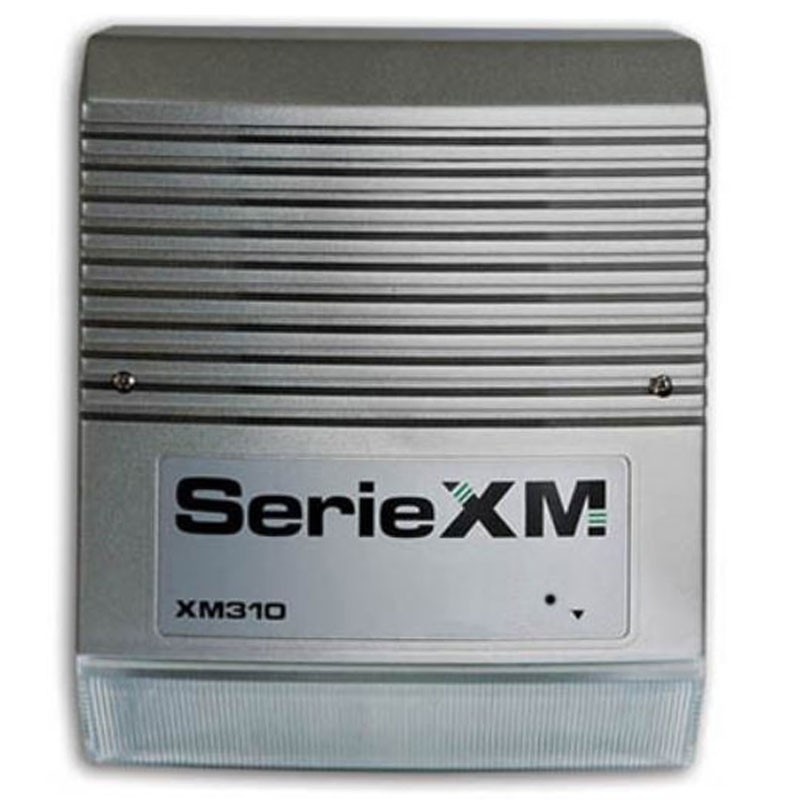

XM310 Self-powered Outdoor Siren:
- Reinforced ABS internal base
- Connection on MPX bus line 3 wires or 2 wires + local power supply
- Function test on battery connection
- Silver color
- Rated supply voltage 12Vdc ±10% (from central or local power supply)
- Compartment for 12V 2Ah battery (not included)
- Control and limitation of battery charging current
- Stainless steel screws
- Sound pressure level 100dB(A) @ 3mt
- Fundamental frequency 1237Hz
- IP34 enclosure protection rating
- Lamp protection fuse 1A
- Power supply protection fuse 500mA
- ABS outer container with polycarbonate flasher
- Inner container epoxy powder coated sheet steel
- Operating temperature range -25°C to +55°C
- Safety grade : 1
- Environmental class : 4
- Dimensions (WxHxD): 205x246x103mm
- Complies with CEI EN50131-1 standard

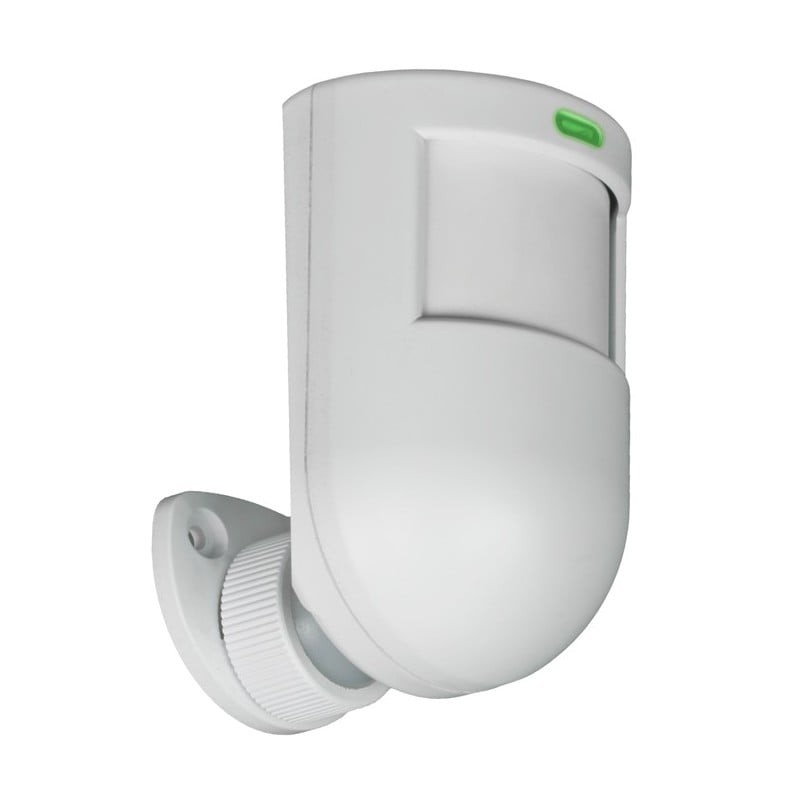

XM12DG dual technology detector:
- Complete with anti-disorientation joint
- Screw lock
- Doppler effect detection
- New anti-masking AND-OR (with automatic OR) function with programmable sensitivity
- Tamper protection
- Dual-element digital sensor (Digipyro) 1
- 10.525Ghz microwave sensor
- Connection on MPX 3-wire bus line
- High immunity to RF 30Vm
- Rated supply voltage 12Vdc ±10%
- Maximum power consumption 25mA (on +12V); 1mA (on MPX)
- Fresnel lens beams 22 (on 3 horizontal levels)
- Sensitivity levels 8
- Pulse counter function 1 ÷ 4 programmable
- Frontal coverage angle (PIR) H: 120°; V: 60°
- Microwave frontal coverage angle H: 80°; V: 32°
- Coverage 12mt
- Programmable signaling LED
- Initial stabilization time 60
- Security grade 1
- Environmental class 2
- Operating temperature +5°C to 40°C
- Conforms to CEI EN 50131-1 standard

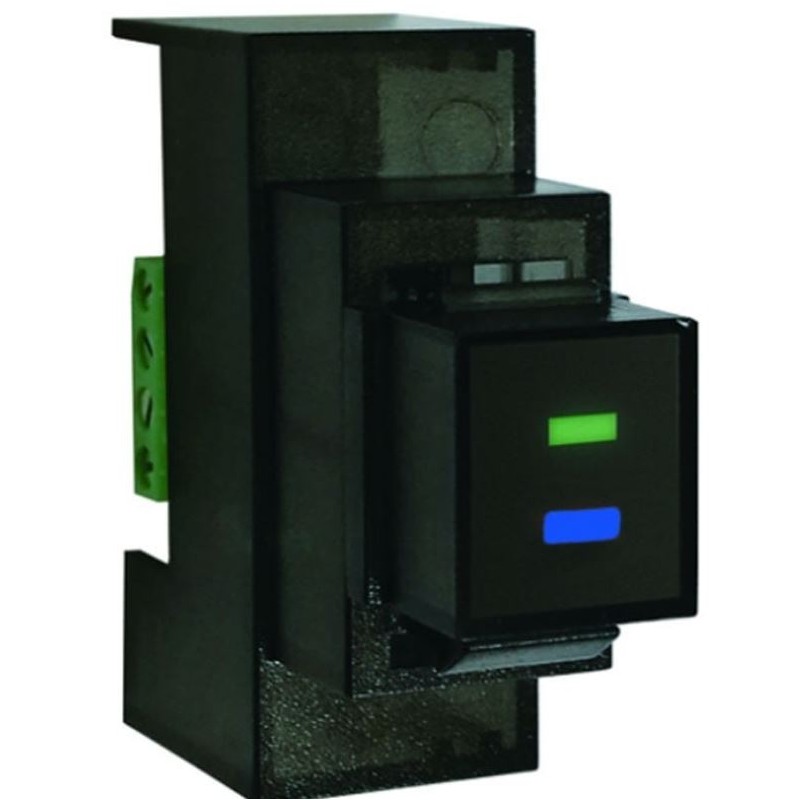

XM200K proximity reader:
- Connection on MPX 3-wire bus line
- Rated supply voltage 12Vdc ±10%.
- Maximum current consumption 35mA
- Safety grade 1
- Environmental class 2
- Dimensions (W) 18mm (H) 32mm (D) 30mm

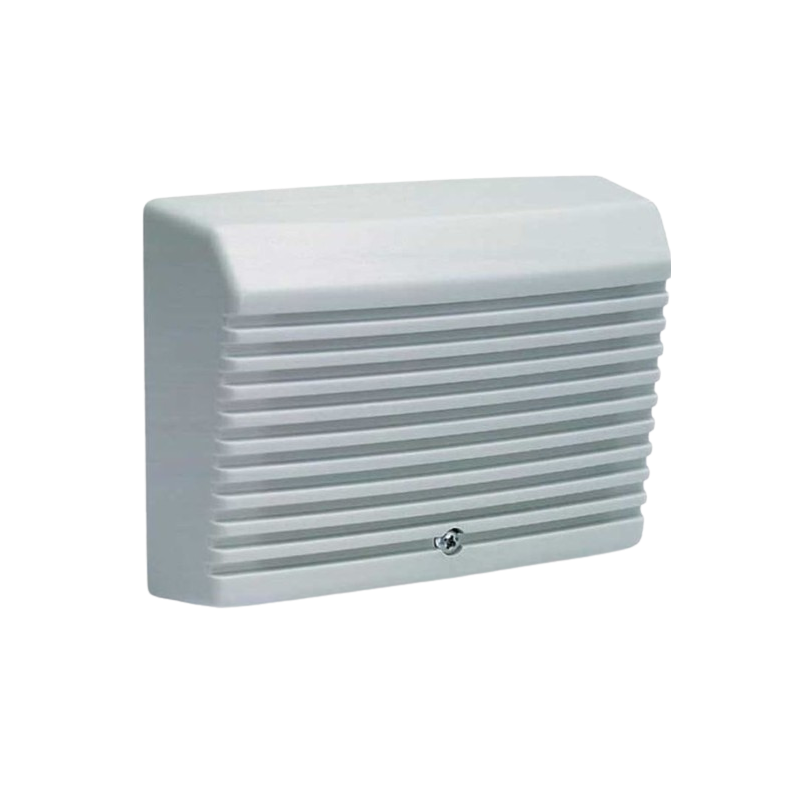

Piezo electronic indoor siren SP31:
- Weight 0.260 kg
- Dimensions 14 × 7 × 18 cm
- Reverse polarity protection
- Tamper protection against opening and tearing
- Rated supply voltage 12V
- Maximum power consumption 140mA
- Pressure level 99dB(A) @ 3mt
- Frequency 3585Hz
- ABS enclosure
- Operating temperature 5°C to 40°C
- Dimensions (W) 135mm (H) 95mm (D) 43mm

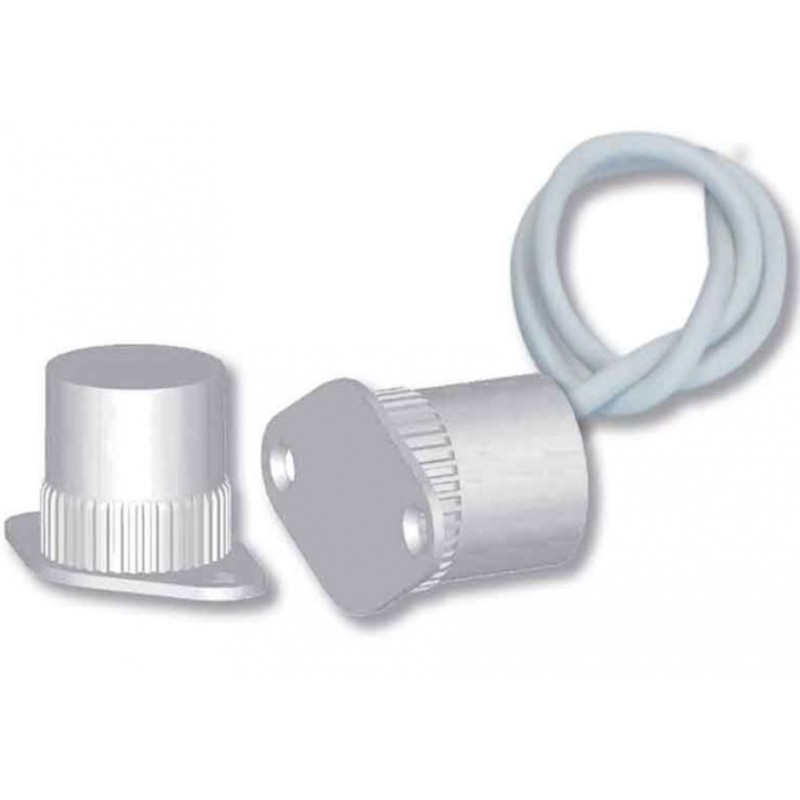

XM56 recessed magnetic contact:
- Recessed installation on armored doors
- Connection on 2-wire bus line
- Sensitivity levels 8 (50mS to 225mS with 25mS steps)
- Operating distance 26mm (on wood or plastic) / 12mm (on metal or aluminum)
- Container Nylon
- Operating temperature 5°C to 40°C
- Color white
- Dimensions (Ø) 19mm (H) 19mm

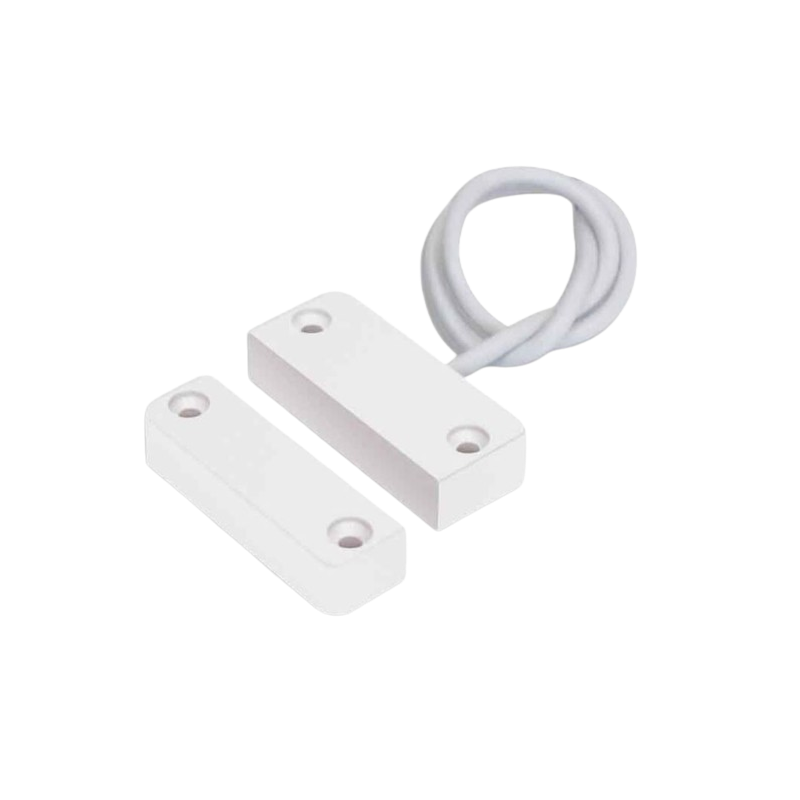

External magnetic contact XM58:
- External installation, on doors and windows
- Connection on 2-wire bus line
- Sensitivity levels 8 (50mS to 225mS with 25mS steps)
- Operating distance 18mm (on wood or plastic)
- Container Nylon
- Operating temperature 5°C to 40°C
- Color white
- Dimensions (W) 16mm (H) 9mm (D) 40mm
There are no reviews
Data sheet
- KIT: Burglar alarm kits
- System: Wireless
